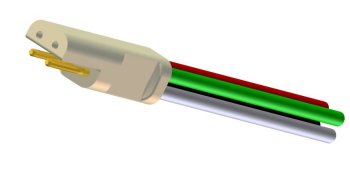

444-1515-18-03-XX : Patchcords - Sub-miniture - Polarised
Download CAD Data
How to order code
444-1515-18-03-XX
Check part availability
Material Code Table
Component Material RoHS
Insulation Nylon RoSH compliant
Jack Beryllium Copper RoSH compliant
Pin Brass RoSH compliant
Insulated Wire Copper RoSH compliant
Insulated Wire Insulation Vinyl RoSH compliant
Solder 60/40 Tin/Lead
Finish Code Table
Dash NoPlug - Jack FinishRoHS
-03GoldRoSH compliant
Wire Code Table
Dash NoColour
-01White, White, White, White
-02Black, Red, White, Green
Brochure Download

Cable may be cut to different sub-lengths as required by the user
