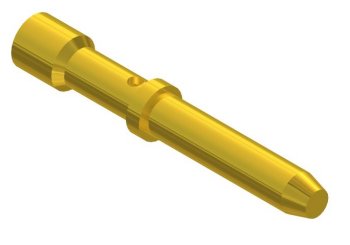

460-3369-03-XX-XX : Connector Pins - Patchcoard Crimp
Download CAD Data
How to order code
460-3369-03-XX-XX
Check part availability
Material Code Table
ComponentMaterialRoHS
Pin Brass RoSH compliant
Insulation Polyolefin Plastic RoSH compliant
Finish Code Table
Dash NoPin FinishRoHS
-03Gold over NickelRoSH compliant
-04Electro-TinRoSH compliant
Brochure Download
460-3050 / 461-3102
Recommended hook-up wire size .039 (0.99) Max. Diameter over Insulation# 28AWG, 7 strands # 36 AWG copper wire plastic insulated

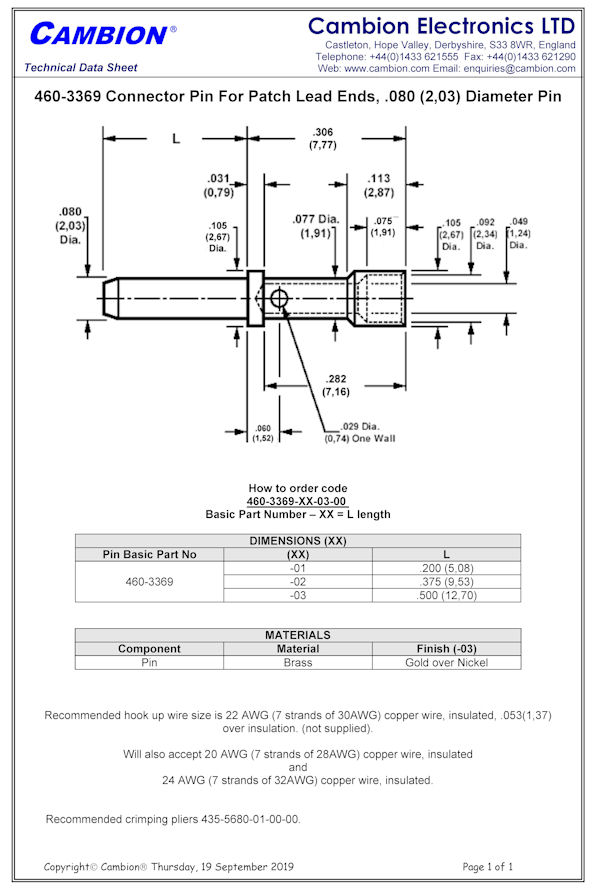

460-3308 / 460-3368 / 460-3369
Recommended hook-up wire size .053 (1.37) Max. Diameter over Insulation# 22AWG, 7 strands # 30 AWG copper wire PTFE insulated
Socket also accommodates# 20 AWG, 7 strands # 28 AWG copper wire insulated
 # 24 AWG, 7 strands # 32 AWG copper wire insulated
460-3299
Recommended hook-up wire size# 20AWG, 7 strands # 28 AWG copper wire PTFE insulated
Socket also accommodates# 18 AWG, 7 strands # 26 AWG copper wire, insulated
 # 16 AWG, 19 strands # 29 AWG copper wire, insulated
